John Deere
RE178647

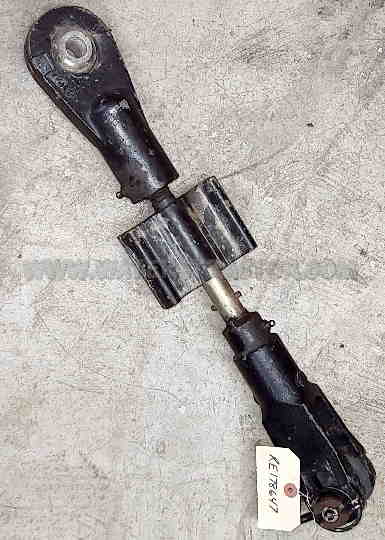

Lift Link Assy, RH
Out of Stock |
Mouse over image for an enlarged view.
Policies & Warranty |
| Used |
$185.00
|
Models: 5105, 5200, 5210, 5220, 5225, 5325, 5400, 5420, 5425, 5525, 5625
Alternate: RE45855, RE178647, RE243215 |
Assy includes R105221 yoke end, R105225 center link, R105227 bottom clevis end.
Center pin hole to center pin hole adjusts from minimum length of 18-3/4" to maximum length of 22-3/4"
Clevis end takes 5/8" pin and other takes 3/4"
Use with rear rims 24" and smaller. |
|
|
|
|
