2010 JCB 409 Wheel LoaderSOLD
Hours: 2253
Horsepower: 75
Deutz diesel engine TD 2011 L04.1 Tier 3

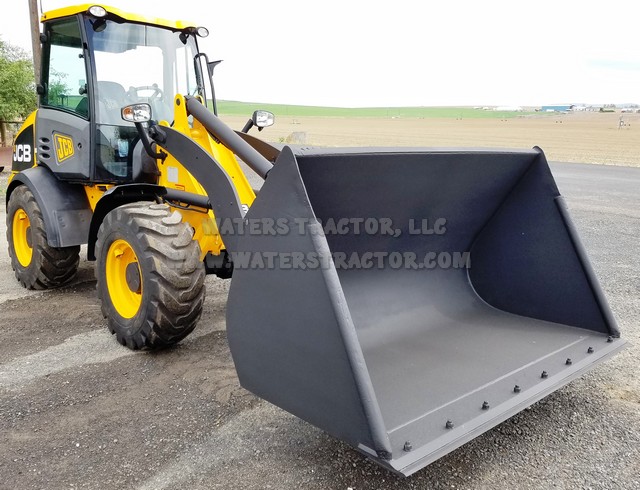

1.3 yard self leveling bucket
Hydraulic bucket dis-connect from your seat
Aux hydraulics for an attachment
Shuttle transmission
20 mph plus axles
2 speed Hydrostat
Tires with almost new tread
Cab & Interior excellent with AC & heat
AM/FM CD player, Sirius ready
Tilt steering
Weighs approximately 13000 lbs.

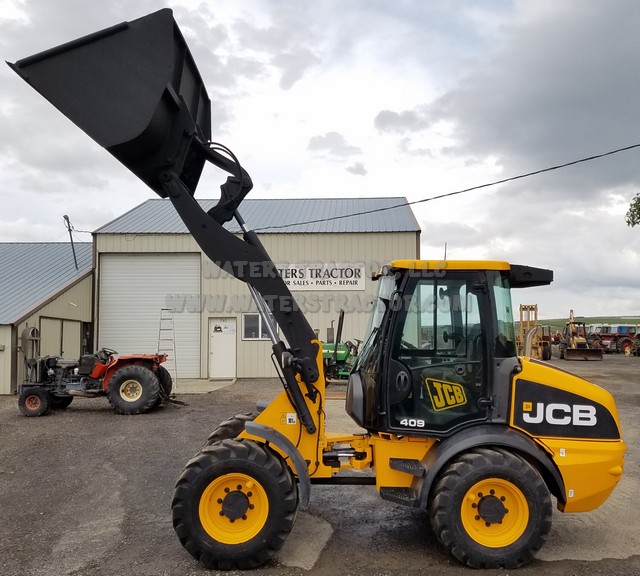

Z Bar Loader
Offers fast cycle times, excellent rollback, dump angles and powerful breakout for high productivity.
Return to dig and parallel lift is incorporated into the loader geometry as standard ensuring easy operation and safe accurate pallet handling.
Loader arms are constructed from flat plate resulting in high strength and good visibility to the side of attachment.
Design minimizes pivot points for low maintenance.
Integral loader quick coupler resulting in no loss of breakout force, and maximum load carrying ability.
Auxiliary hydraulic supply fitted as standard to the loader quick coupler, increases versatility of the unit.

Hydrostatic Transmission
High efficiency variable speed control
2 pre-set speed ranges. Low speed 0 - 4 mph allows for precision control while high-speed 0 - 12.5 mph can be used between sites. Includes 20 mph high speed option.
Hydrostatic drive also provides dynamic braking as the accelerator is released
Portal axles are fitted directly to the mainframe ensuring good stability and excellent ground clearance. Rear limited slip differential for better traction.

The center pivot is a substantial (five-inch diameter) steel forging allowing both articulation and oscillation movement giving a stable feel to the machine for the operator.

Front chassis carries the loader unit minimizing any cables and pipework crossing the center pivot.
Well designed engine and cab mounts contribute to achieving an exceptionally low 101 db external and 73db in-cab noise level.

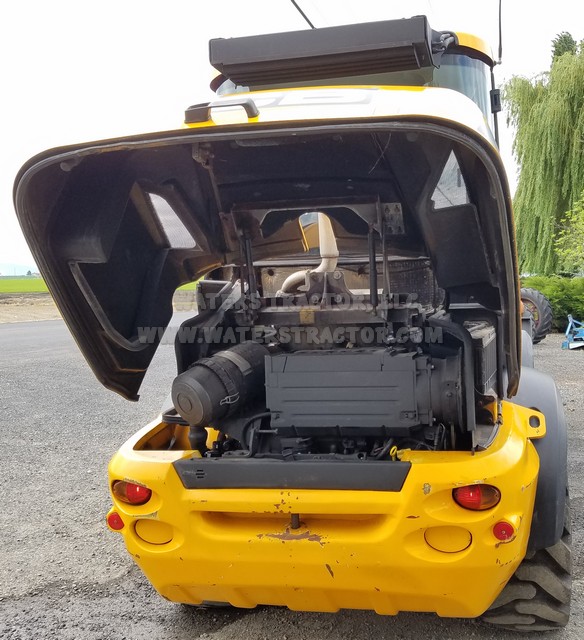

The engine is mounted transversely which allows an excellent rearward view from the cab and makes for a short rear overhang.

Cab and Controls
ROPS and FOPS cab offering a high level of comfort and excellent all round visibility.
Hydraulic servo loader controls with armrest gives fatigue free loader operation
Forward and reverse switch mounted on the joystick allows for easy and comfortable operation
Combined brake and inching pedal allows further control. The "inching" control pedal progressively disengages the transmission, allowing extra low travel seed with maximum engine speed for increased loader usage especially in sweeping applications.
